Engineering Design
Explore our range of design services set up to help you move forward, with your idea, project, or consulting needs.
What We Offer
We offer a wide range of project completion to meet the needs of every client. Have something else in mind? We'd be happy to work with you to create a custom project.
-
From Idea to production ready printed circuit boards.
Design for EMI and extreme ESD and over voltage conditions
Circuit simulation for faster design
Printed circuit board layout
Parts selection
BOM
in house prototype circuit board assembly and testing
-
Complete design and prototyping of mechanical parts.
CAD & 3D modeling
Thermal and Stress Analysis
Creative design solutions for production friendly products
Industry and Military Standards
-
Complete Electrical and mechanical testing of design prototype.
Recommended Production test station design and procedure.
-
If needed we can produce a fully workable prototype.
A complete file package needed for production.
We pride our self on quick turn prototypes that look so good, they are ready for sale or trade show.
Our Process
Plan with Purpose
Together, we outline a path forward that’s realistic, strategic, and tailored to your specific needs.
Collaborate Openly
You’re part of the process. We keep communication open and decisions shared—no black boxes or surprises.
Flexibility
Every project is different. We stay flexible and responsive to make sure the process fits your flow—not the other way around.
End Result
When we deliver, it’s not just a finished product—it’s a tested solution you can trust.
Past Projects

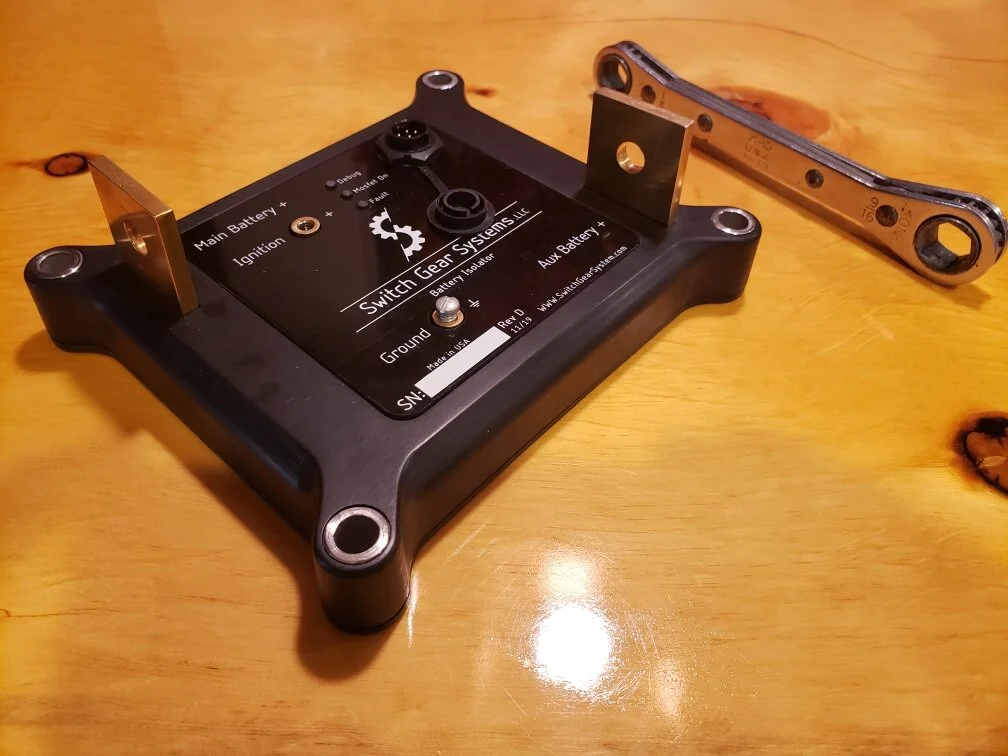

The Isolator Project
A High performance 300A or 600A Continuous current Bidirectional Automotive battery Isolator with remote display monitor. This is what started the company. A patented technology that can be used for many high current DC switching applications. Features include:
Ultra-low on resistance
Individual microprocessor controlled main switch and remote monitor.
Current sensing without using a shunt resistor for efficiency.
Safety shutoff for Over temperature and over current sustained loads.
Designed to handle automotive and military vehicle environments and standards.
Technology can be used for Uni or Bi directional current flow, switching and H-Bridge topologies.
We love this one so much, that we run it in our own vehicles!
Past Projects

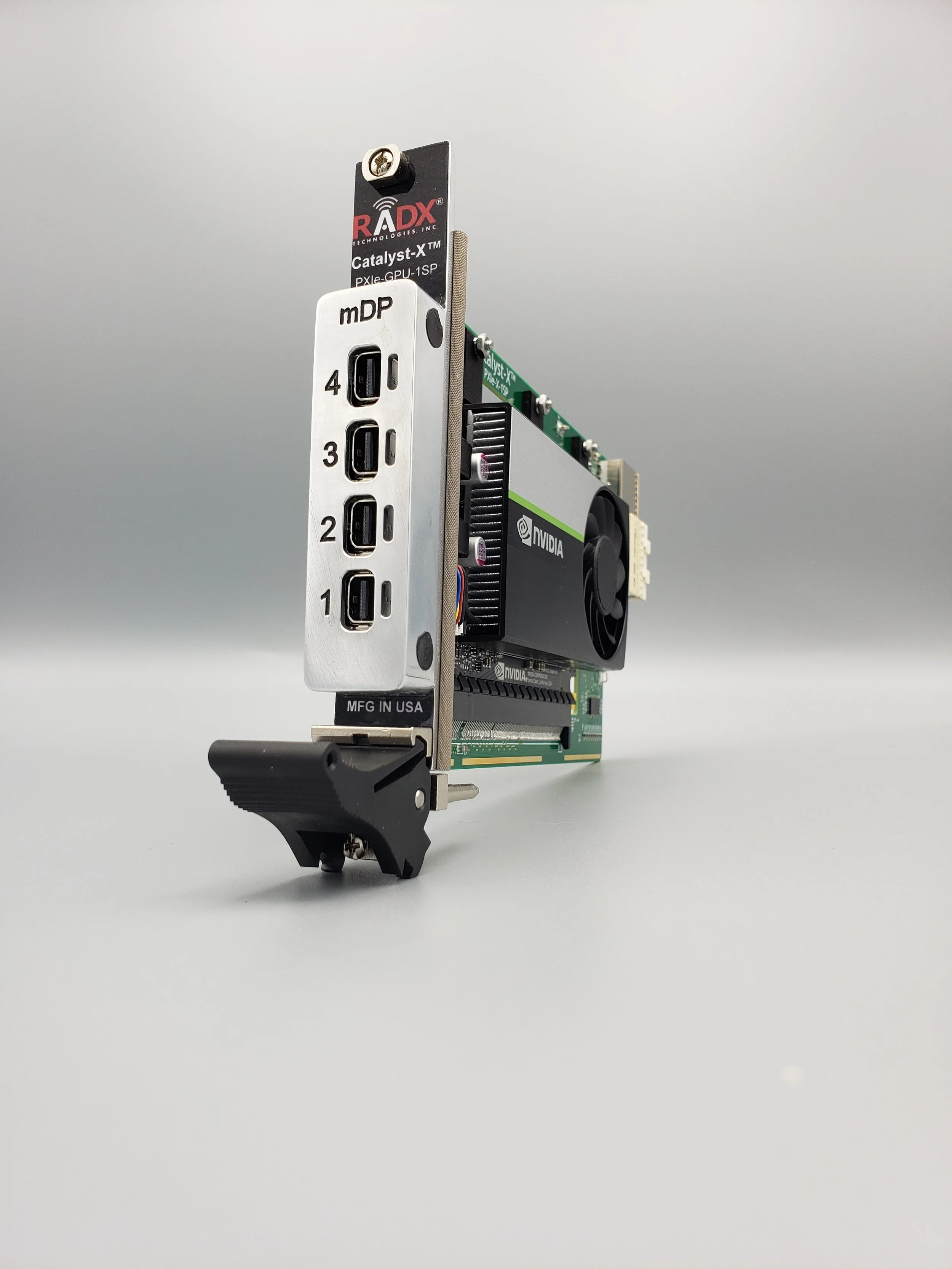

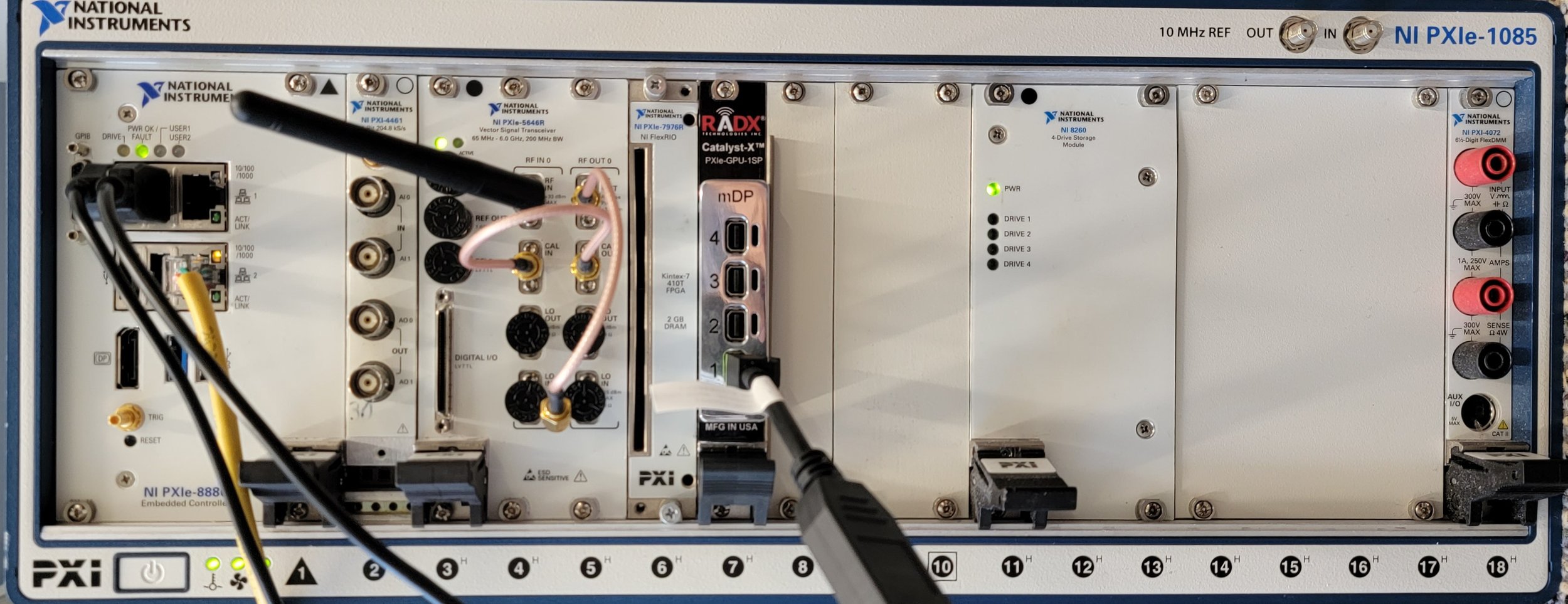

PCIe x16 to PXIe x8 Project
A Patented PCIe Gen 3 card that can adapt PC cards into the PXIe test chassis all using only a single slot. This Card incorporates Gen 4 redrivers and 100MHz PCIe Clock generation.
Past Projects

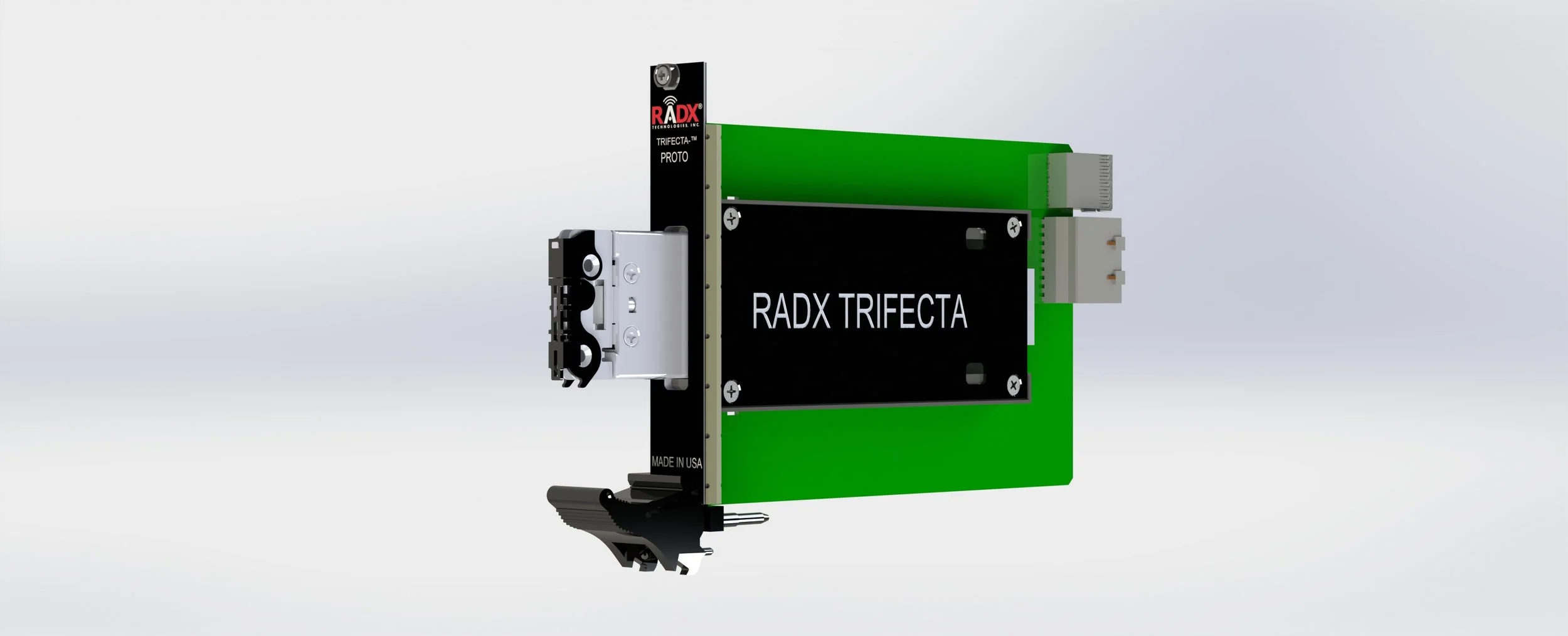

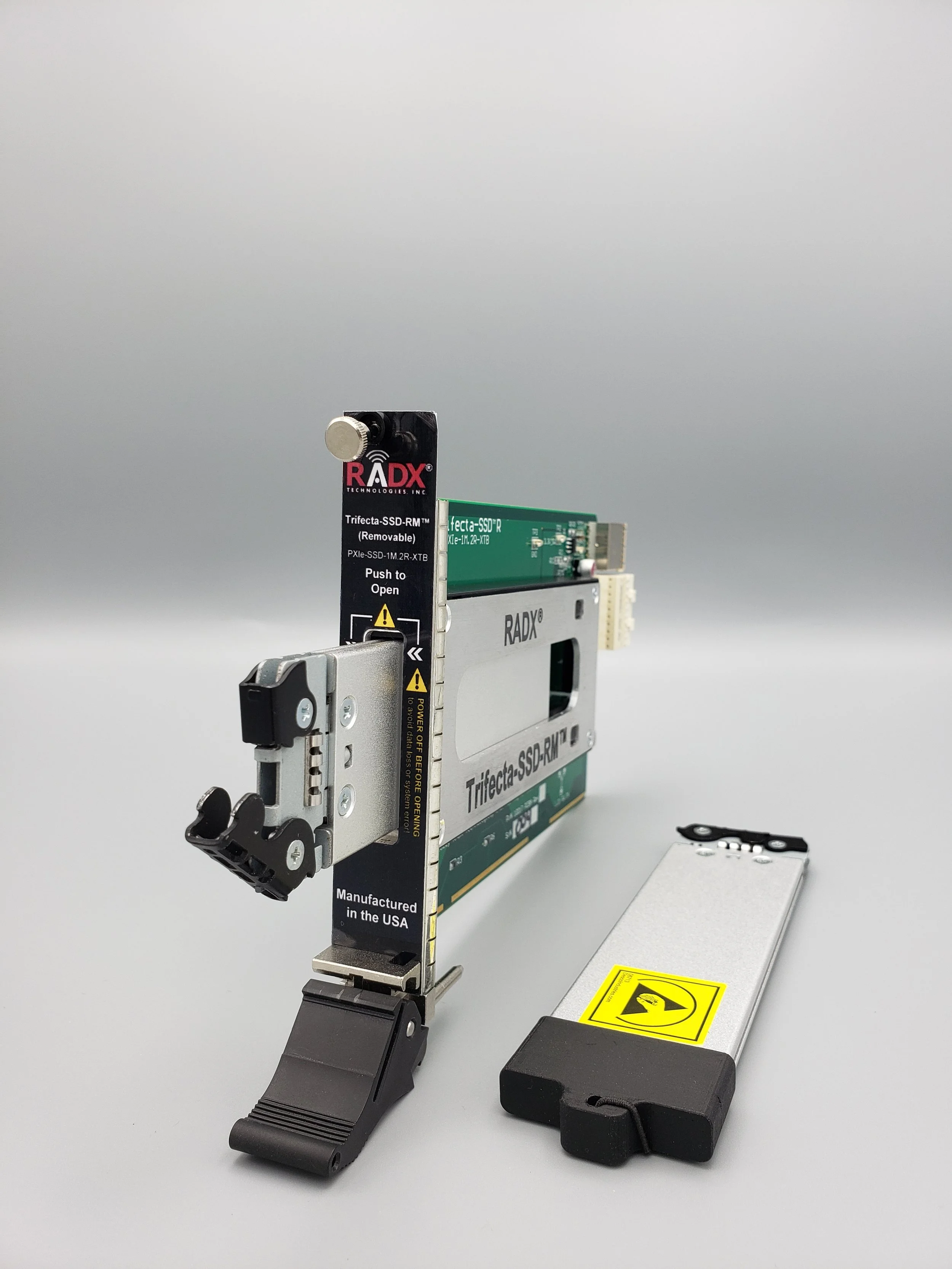

M.2 solid state removable Drive to PXIe x4 Project
A PXIe Gen 3 card that excepts a M.2 Solid state drive cartridge for removable storage within the PXIe chassis.
Past Projects

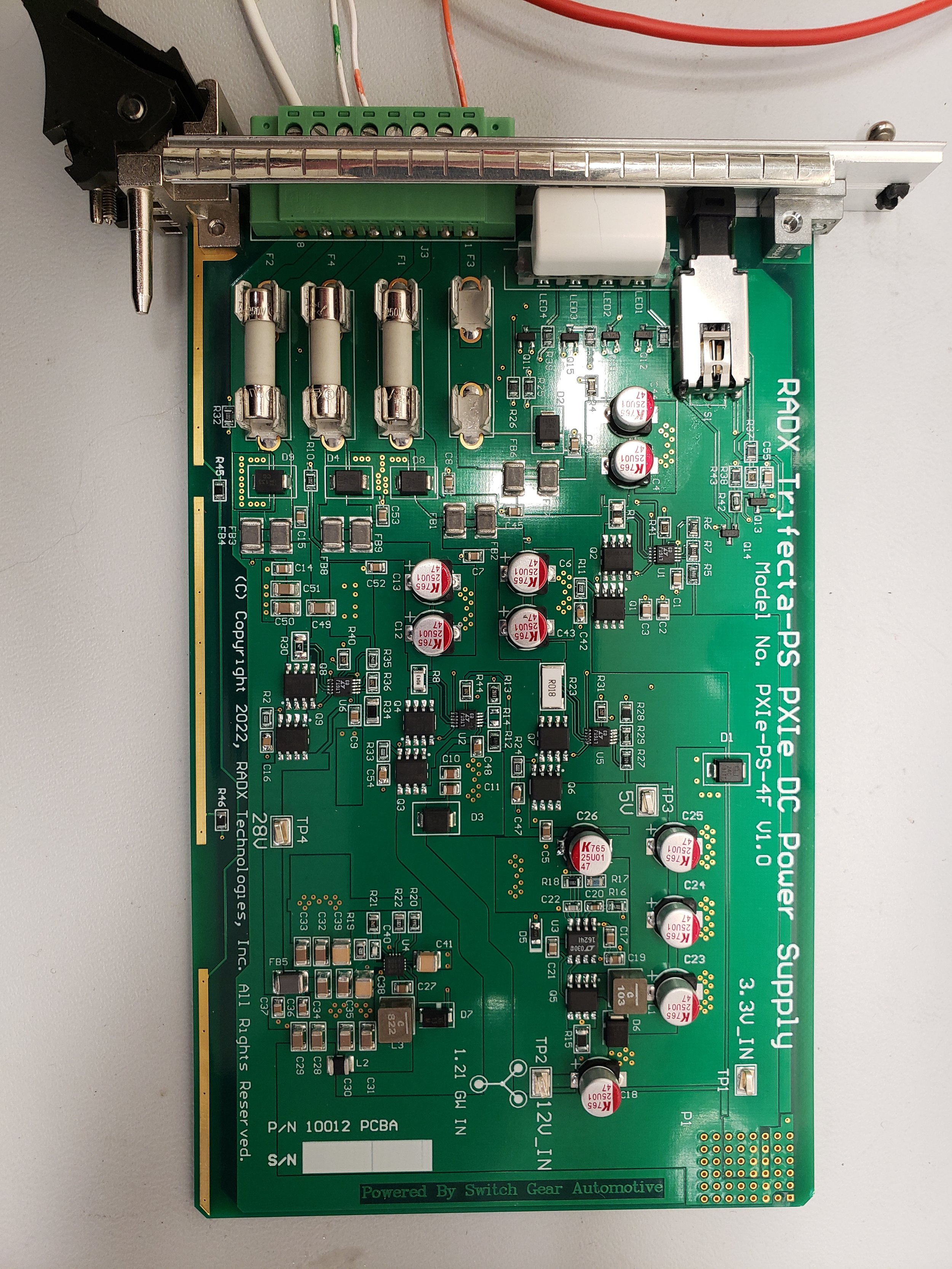

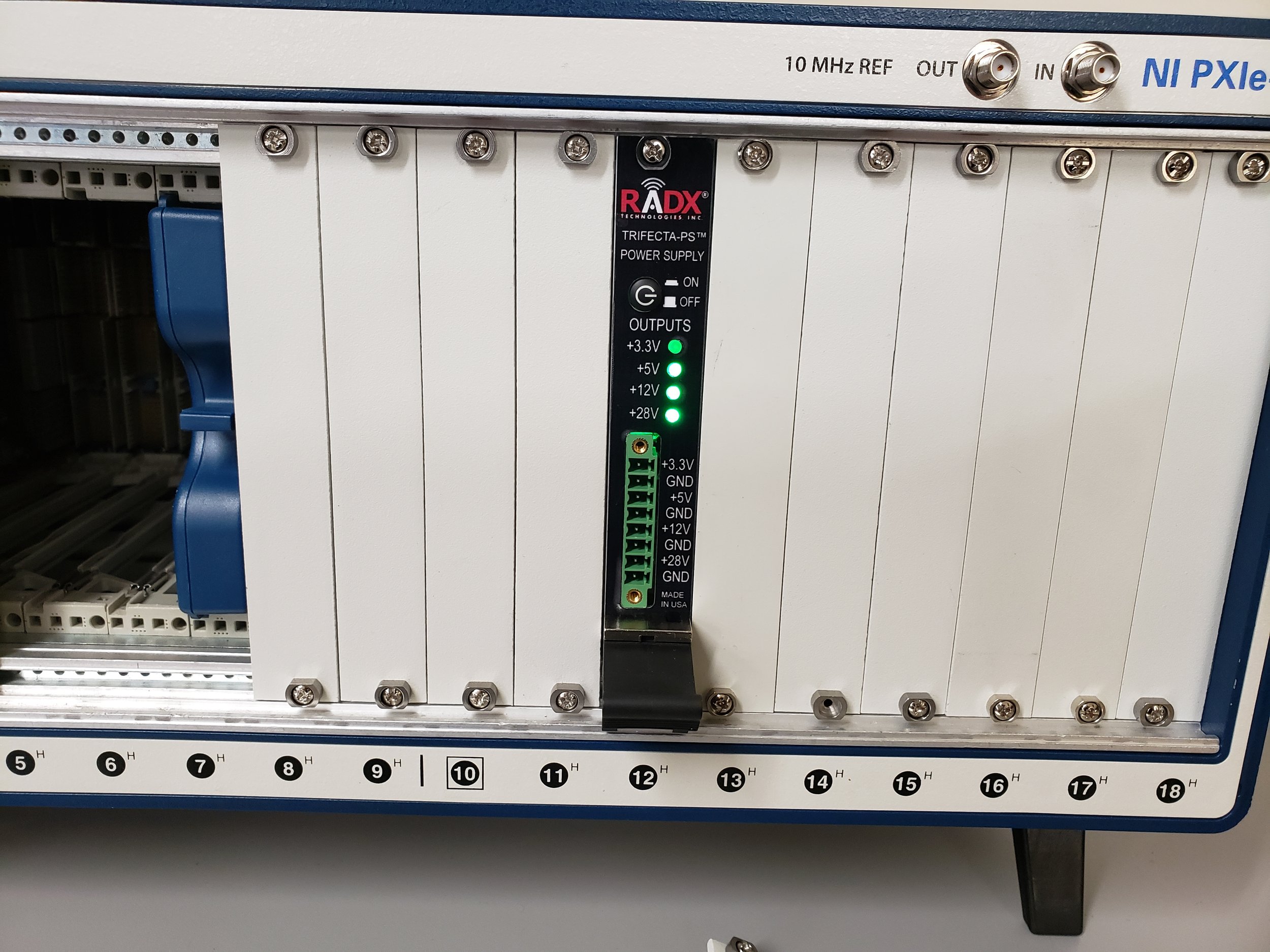

PXIe 4 output Power supply
Electronic fault protection for each output.
+3.3,V +5V, +12V,
and +28V low noise for RF work.
Past Projects4 Cards in one system providing Raided storage

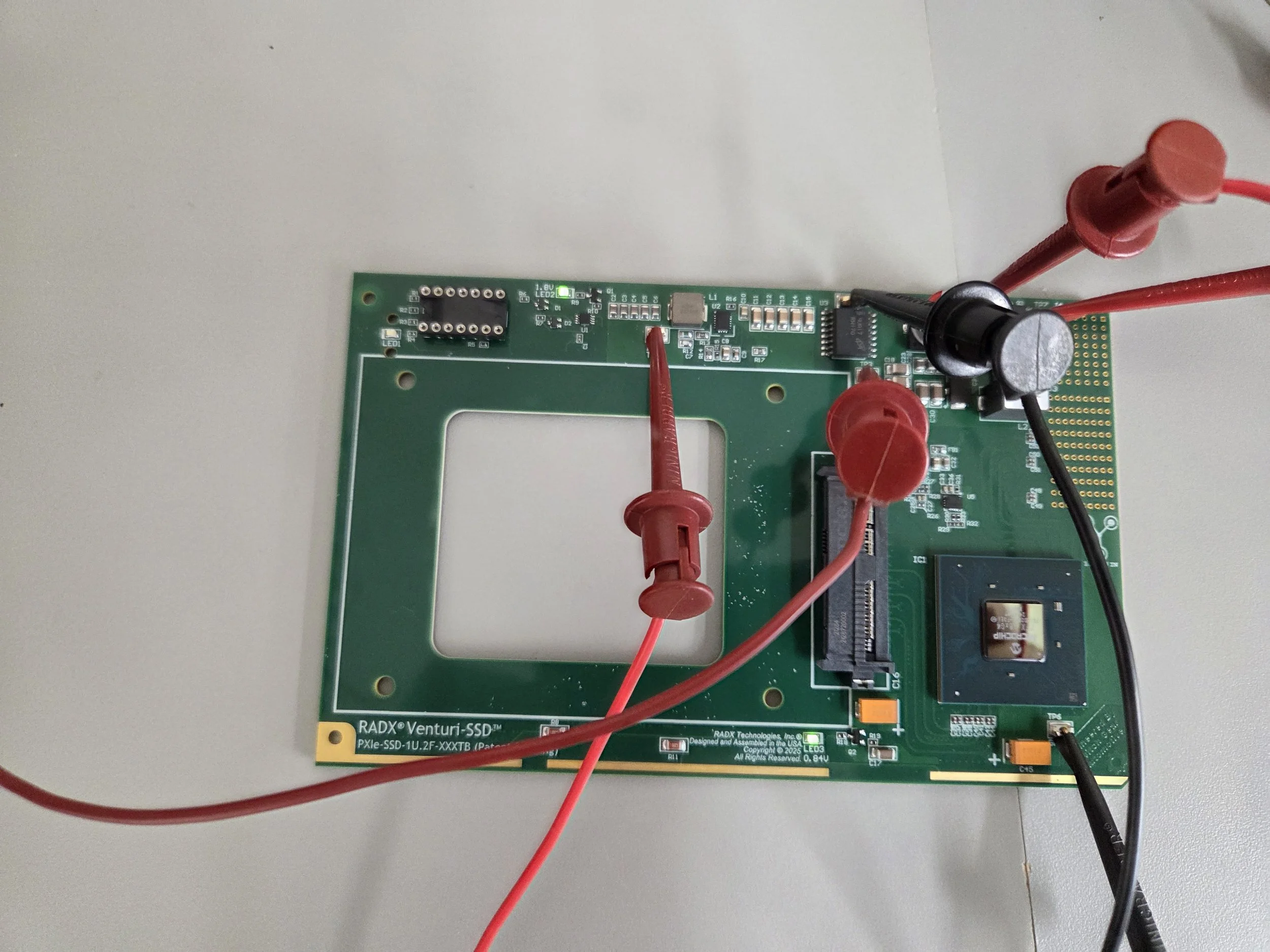

High speed U.2 Card
U.2 DATA Storage Card that excepts Gen 5 or Gen 4 U.2 Solid state drives. Technology allows extreme Read Write speeds compared to comparable storage in Gen 3 PXIe chassis. Patent Pending
